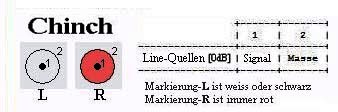

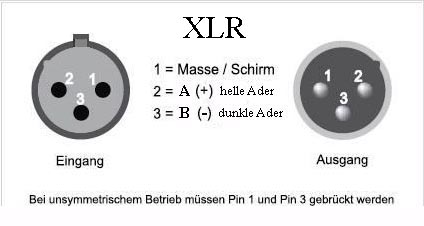

"Tuchel" und "Minituchel"

                +------+-------+------+
                |  1   |   2   |  3   |
----------------+------+-------+------+
Mikrofon        | NF-a | Masse | NF-b |
(symetrisch)    | [+]  |       | [-]  |
Tonaderspeisung |      |       |      |
----------------+------+-------+------+
Mikrofon        | NF-a | Masse | NF-b |
(symetrisch)    | [+]  |  [-]  | [+]  |
Phantomspeisung |      |       |      |
----------------+------+-------+------+

"Diode"  [Mono: Brücke zw. 3+5 und 1+4]

               +------+-------+------+------+------+
               |  1   |   2   |  3   |  4   |  5   |
---------------+------+-------+------+------+------+
Mikrofon       | NF-L | Masse |      | NF-R |      |
(unsymetrisch) |      |       |      |      |      |
---------------+------+-------+------+------+------+
Schallplatte   |      | Masse | NF-L |      | NF-R |
Tuner          |      |       |      |      |      |
---------------+------+-------+------+------+------+
Radio          | NF-L | Masse | NF-L | NF-R | NF-R |
Verstärker     | Ausg |       | Eing | Ausg | Eing |
---------------+------+-------+------+------+------+
Tonband        | NF-L | Masse | NF-L | NF-R | NF-R |
               | Eing |       | Ausg | Eing | Ausg |
---------------+------+-------+------+------+------+

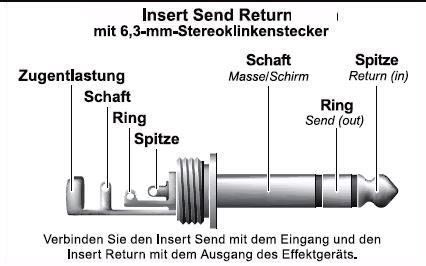

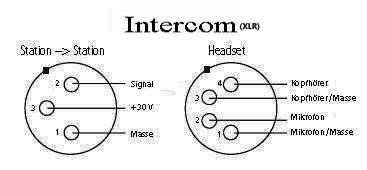

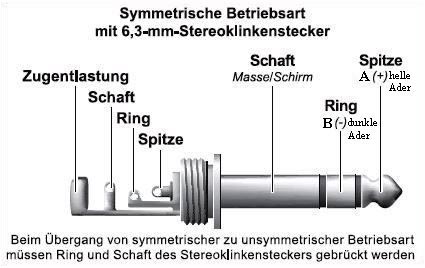

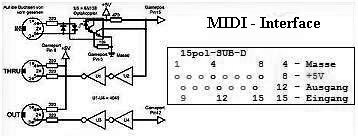

MIDI           |      | Masse |      | +5V  |Daten |
               |      |       |      |      |      |
---------------+------+-------+------+------+------+
